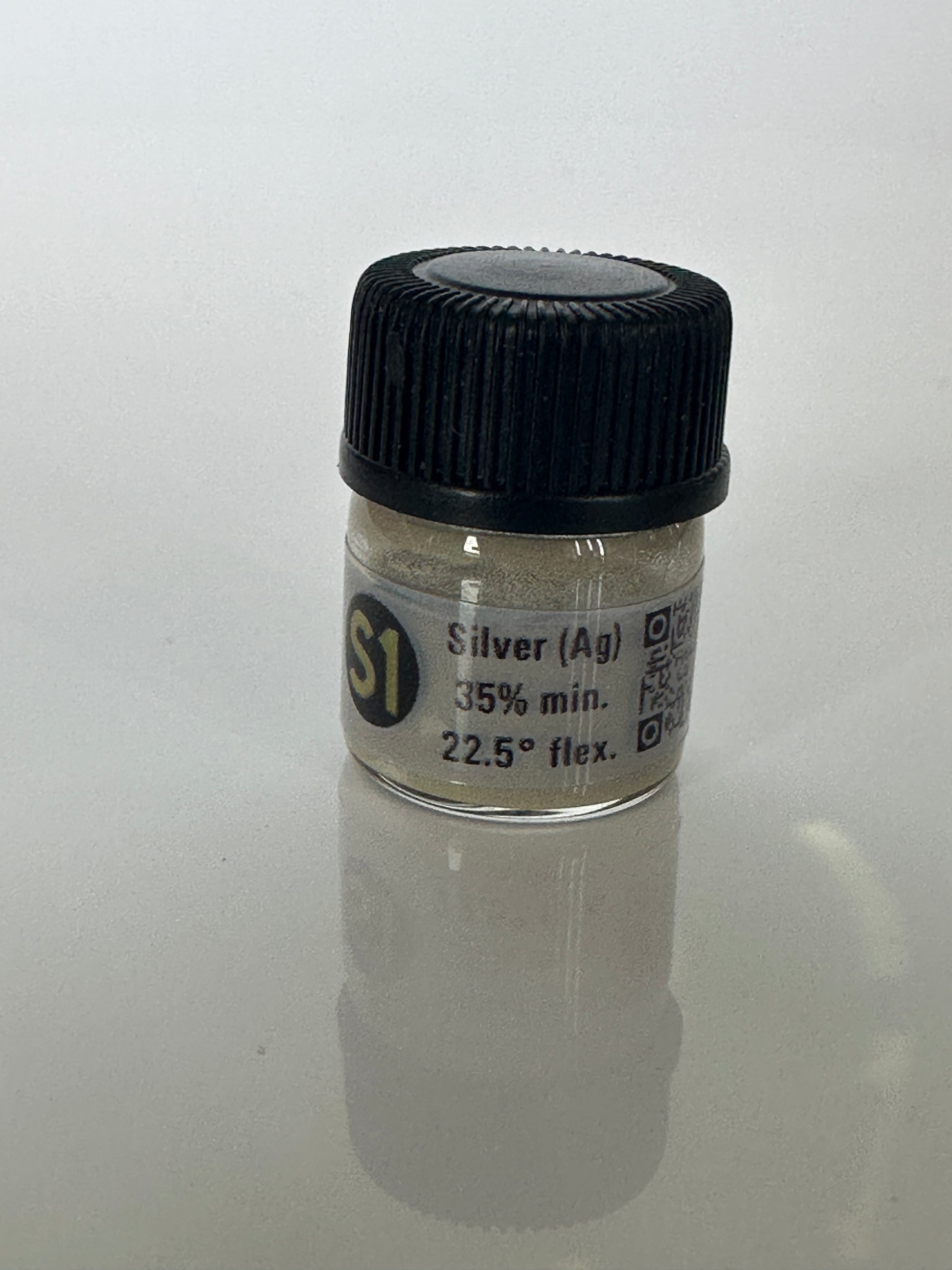

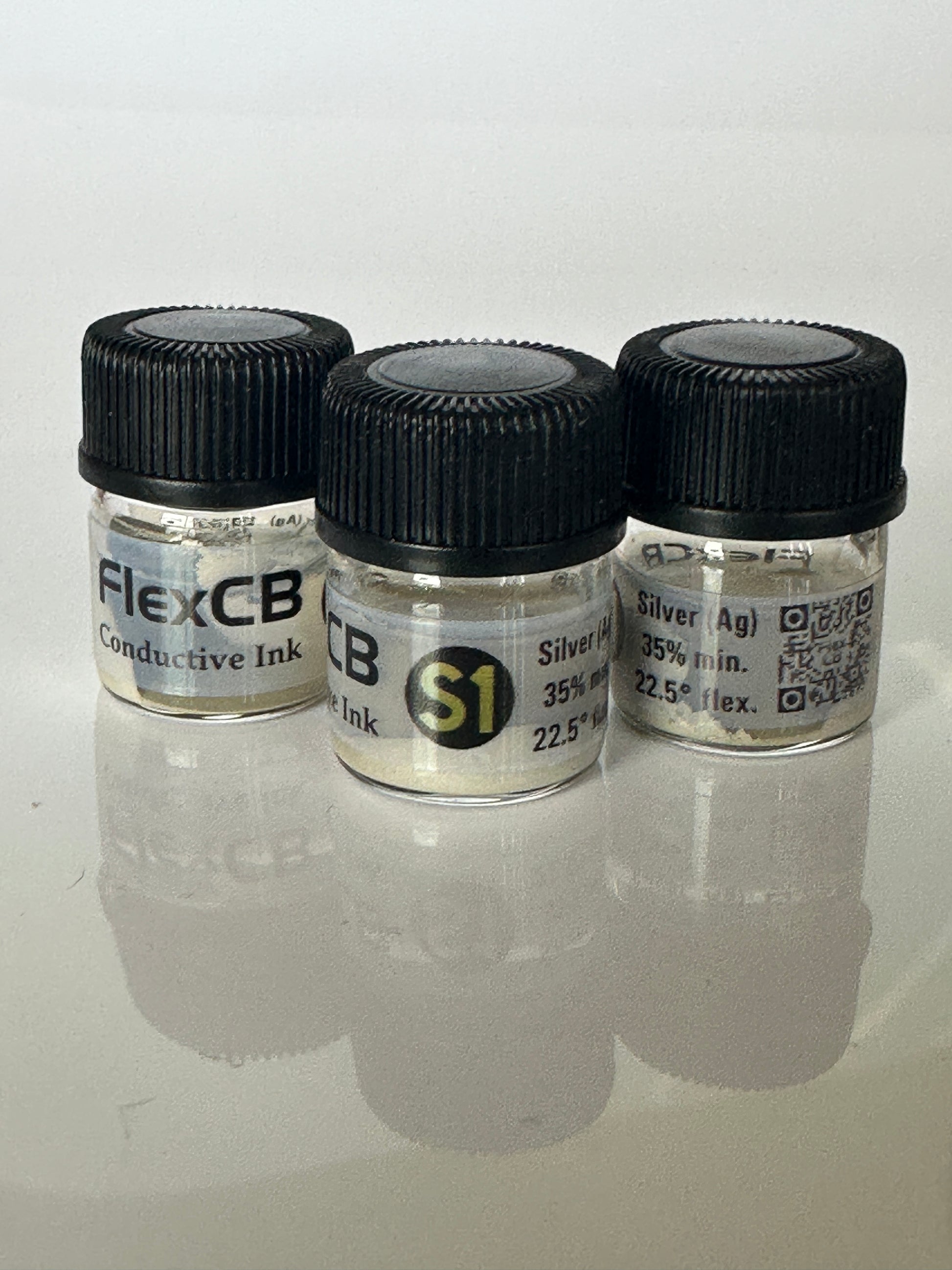

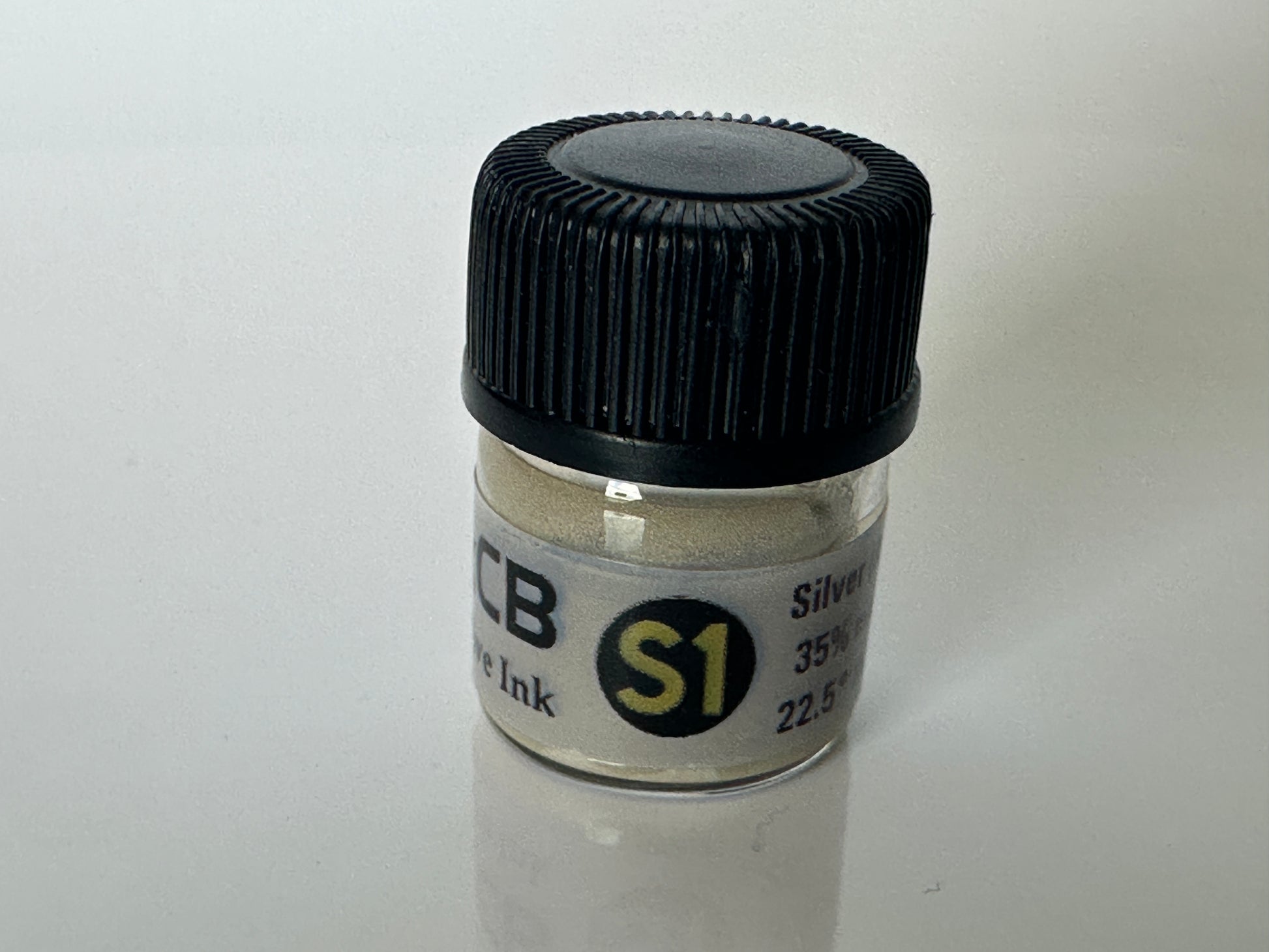

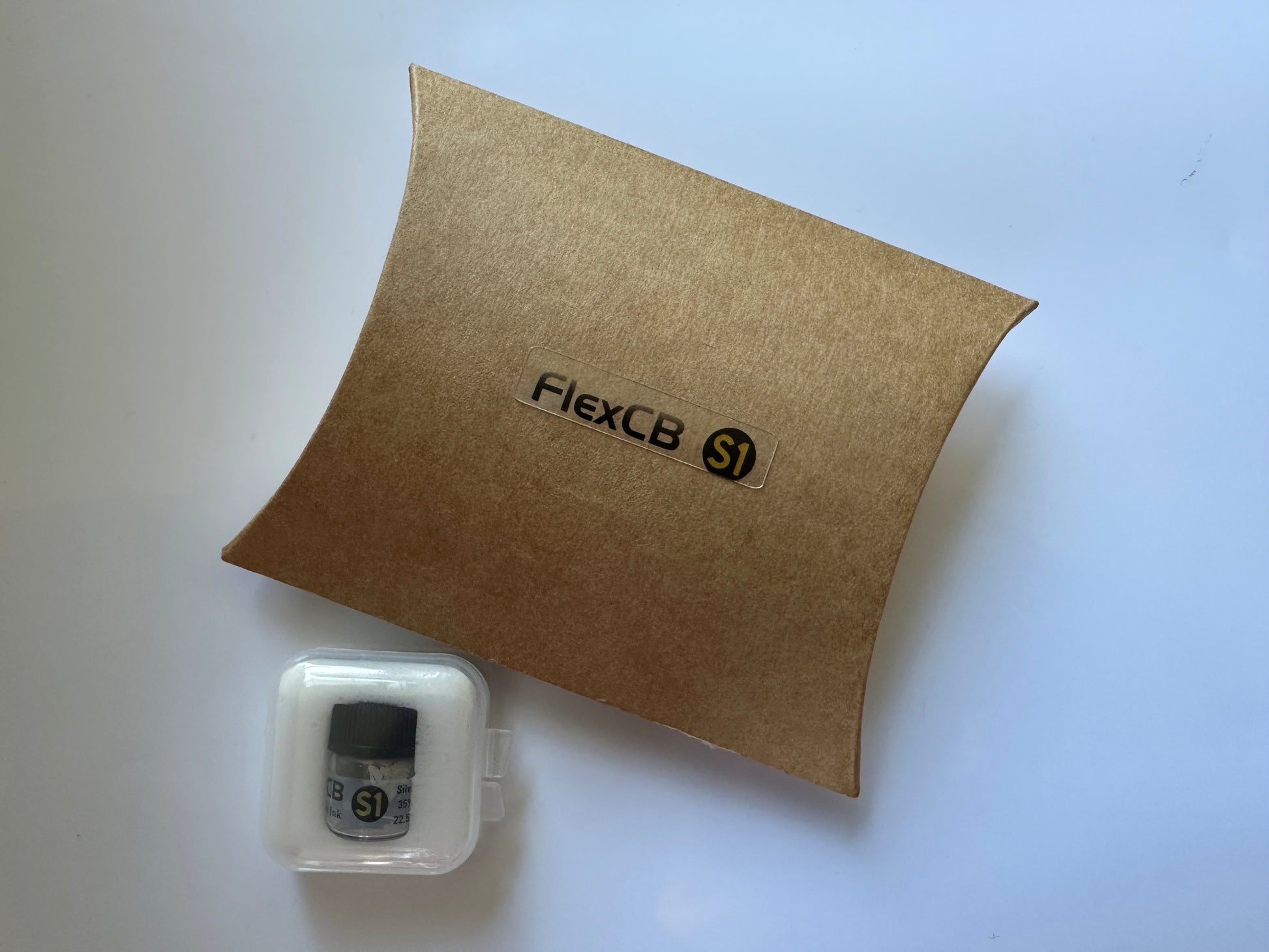

FlexCB S1 Conductive Ink - Silver (Ag) - 1 ml

NOT FOR CHILDREN. PROFESSIONAL USE ONLY.

This is not a normal writing ink. It contains ingredients that can seriously harm a person if ingested or inhaled.

Product Description:

Now you can turn any surface into a circuit board simply by drawing the tracks using our ultra-low resistance silver-based conductive ink.

The silver-based ink offers a very high conductivity and fantastic adhesion to many types of materials such as paper, ABS and PET plastic, wood, stone and glass, making it a perfect choice for application that require drawing longer tracks on various surfaces in 2D or 3D.

You can also use the conductive ink to repair your small electronics caused by broken copper tracks on the PCB, simply by rebuilding the tracks using our silver-based conductive ink and rebuild defective contact pads (such as keyboards and remote controls) using the carbon-based conductive ink.

It dries quickly as a semi-flexible surface and can play safely up to a decent degree on a flexible substrate.

It can be soldered on with any soldering wire or paste that contains silver.

Warnings:

Harmful ingredients. Do not touch even after dried and cured. Do not get on skin. Do not inhale fumes. Do not dispose in bath sink. Harmful to the environment and aquatic world with long lasting effects.

Please use gloves, safety goggles or full face mask, and work in a well-ventilated area or under a soldering station hood.

Product Specifications:

Conductivity: Very high (~ 0.003 Ohms per centimeter @ 10 mil layer thickness)

Main ingredients: Silver (minimum 35%), conductive solvents (Acrylic based)

Volume: 1 ml

Application method: Use higher gauge applicator tips (22 gauge or finer) or apply using agitator sprayer.

Drying time: From 30 seconds to 5 minutes depending on the penetration speed and absorbency of the application substrate.

Cure time: No curing needed.
