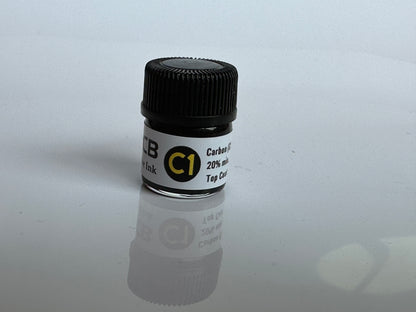

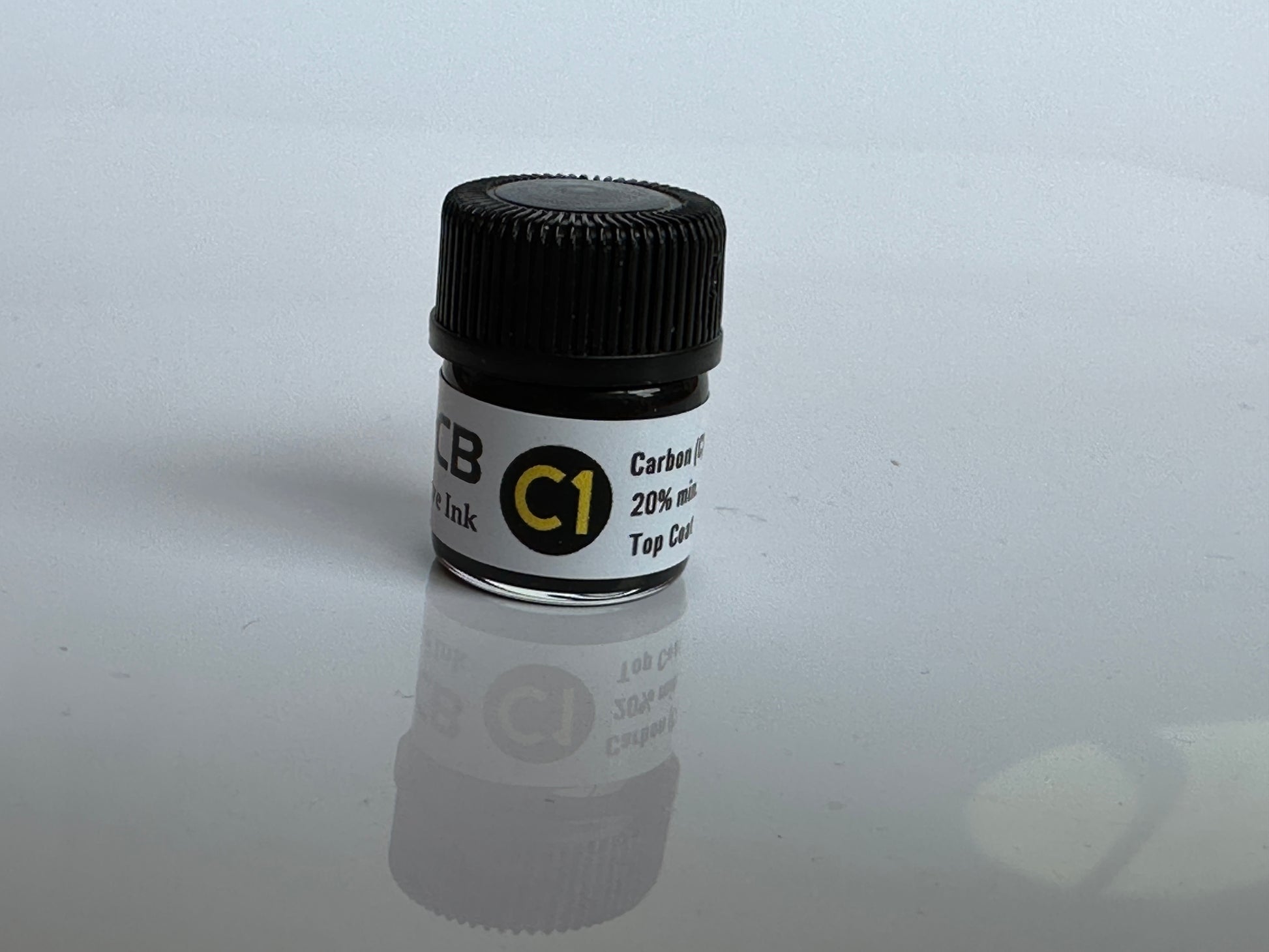

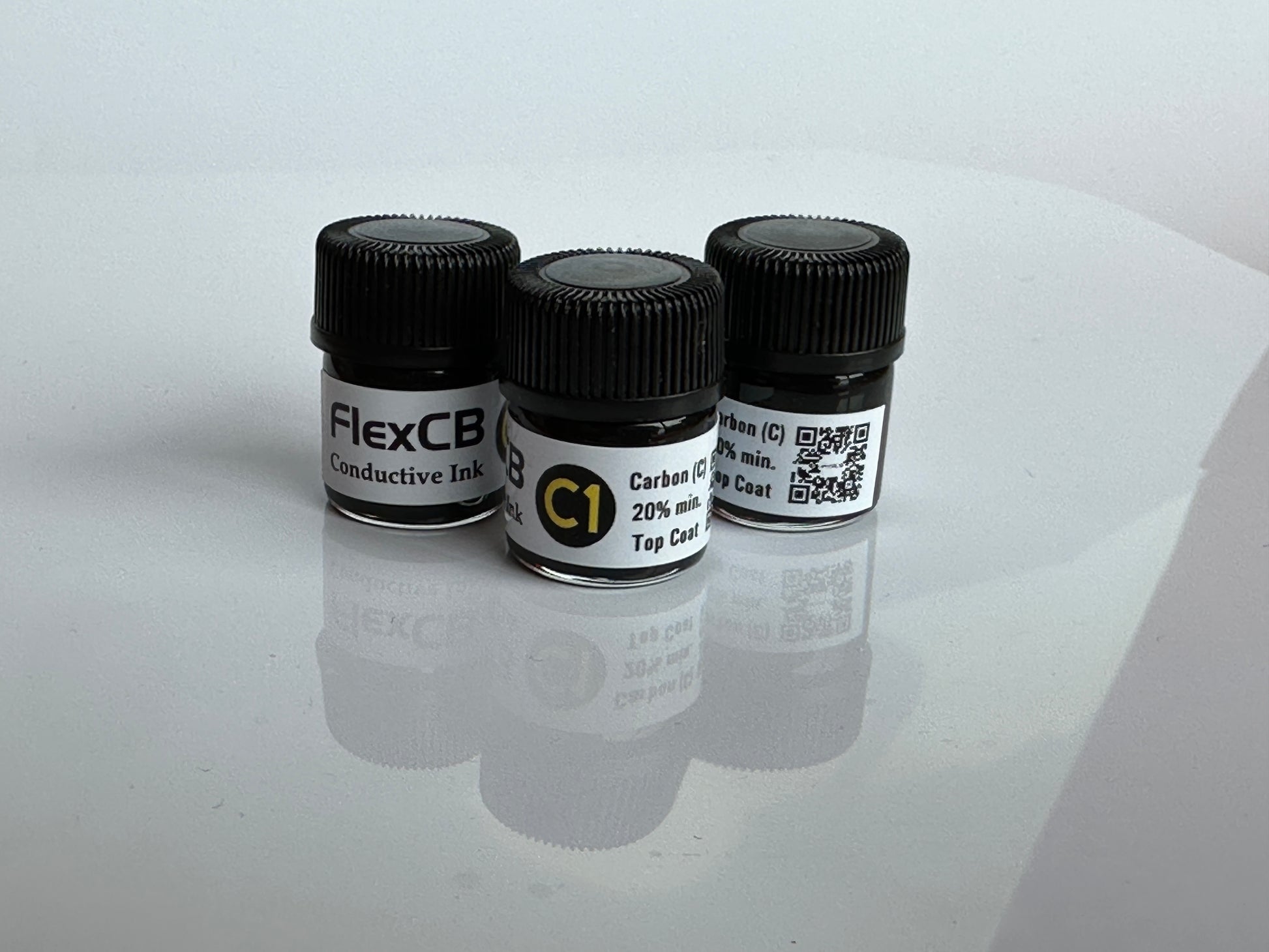

FlexCB C1 Conductive Ink - Carbon (C) - 1 ml

NOT FOR CHILDREN. PROFESSIONAL USE ONLY.

This is not a normal writing ink. It contains ingredients that can seriously harm a person if ingested or inhaled.

Product Description:

The carbon-based conductive ink has a higher resistance than our silver and copper based inks, but it also has a much better wear resistance when dried, making it a perfect fit for mechanically stressed applications such as contact pads of mechanical keyboards using a pair of membrane layers.

You can also use the conductive ink to repair your small electronics caused by broken copper tracks on the PCB, simply by rebuilding the tracks using our silver-based conductive ink and rebuild defective contact pads (such as keyboards and remote controls) using the carbon-based conductive ink.

It dries quickly as a hard surface and can resist wear and scratches to a decent degree when applied on a rigid substrate.

It can not be soldered on, but can be used on top of other conductive layers, copper tracks of a PCB, or applied over other conductive inks layers to protect them from wear.

Warnings:

Harmful ingredients. Do not touch even after dried and cured. Do not get on skin. Do not inhale fumes. Do not dispose in bath sink. Harmful to the environment and aquatic world with long lasting effects.

Please use gloves, safety goggles or full face mask, and work in a well-ventilated area or under a soldering station hood.

Product Specifications:

Conductivity: Low (~ 0.7 Ohms per centimeter @ 10 mil layer thickness)

Main ingredients: Carbon (minimum 45%), conductive solvents (Acrylic based)

Volume: 1 ml

Application method: Use higher gauge applicator tips (26 -30 gauge) or apply using agitator sprayer.

Drying time: From 3 to 15 minutes depending on the coating thickness, penetration speed and absorbency of the application substrate.

Cure time: No curing needed.
